Textile Machine Parts Teardrop Felting Needles

Short Description:

Special needle with peach cross section can greatly reduce puncture resistance and fiber destruction, effectively reduce the rate of broken needle. This needle is commonly used in paper blankets and spiral dry mesh blankets.

Selection range

• Needle 28, 32, 36, 38

• Needle length: 3 “3.5″

• Barb shape: G B GB

• Other shapes of working parts, machine number, barb shape and needle length can be customized

Send email to us

Product Detail

Product Tags

Product Description

Quick Details

Product name: Felting needles
Warranty: 1.5 years Applicable
Brand Name: YUXING
Use: NEEDLE LOOM
Type: NEEDLE BOARD
Production capacity: 600 million

Condition: New
Raw material: HIGH CARBON STEEL
Place of Origin: Zhejiang, China Brand
Application: For Needle nonwoven fabric
Packing: Well packed from water and damage

Packaging & Delivery

MOQ: 10000pcs
Selling Units: Multiple of 10000
Package size per batch: 32X22X10 cm
Gross weight per batch: 12.00 kg
Package Type: 500pcs into 1 plasitc box, then 10000pcs again into 1 carton box
Picture Example:

Lead Time:

Quantity(Pieces)	1 - 500000	>500000
Est. Time(days)	10	To be negotiated

Products Show

Product Description

Gauges and diameters of Felting Needles

product-description1

Gauge	Shank (mm)	Intermediate Section (mm)	Working part Triangular blade beight (mm)
9	3.56
10	3.25
12	2.67
13	2.35		2.50
14	2.03		2.05
15	1.83	1.75	1.95
16	1.63	1.55	1.65
17	1.37	1.35	1.45
18	1.21	1.20	1.30
19			1.15
20	0.90		1.00
22			0.95
23			0.92
25		0.80	0.90
26			0.85
28			0.80
30			0.75
32		0.65	0.70
34			0.65
36			0.60
38			0.55
40			0.50
42			0.45
43			0.40
46			0.35
The diameter of different parts of needle is indicated by gauge. The smaller gauge meams the larger diameter. When in the working part, the cross-section height is indicated by working part gauge. The cross-section height of conical working part is measured on the position of 5mm from needle point. The other cross-section shape is measured by their height.

Detailed parameters of the felting needle
Product name	Teardrop Felting Needles
Product name	Teardrop Felting Needles
texture	high-carbon steel
colour	bright nickel white
Barb spacing	regular spacing
	medium spacing
	close spacing
	frequent spacing
	single spacing

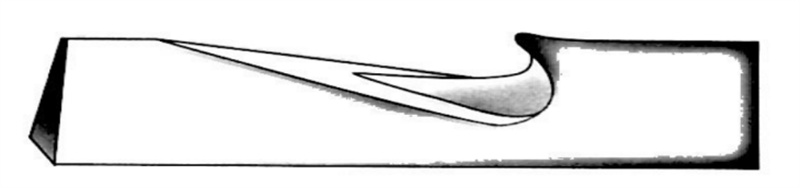

Barb Styles	Type F (Good penetration and hair amount, generally used as pre-piercing)
	Type G Less damage to fiber
	Type B Less damage to fiber
	Type GB Morewear-resistant during use
	Type L On the basis of the B type, the hook teeth are more rounded
	Type K(Open style needle） (Can make the hook spines with better hair quantity)

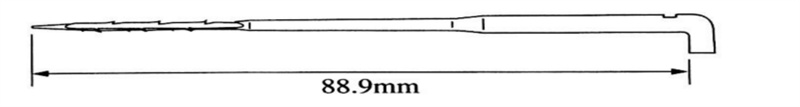

Nominal length of felting needles	3.5 inch
	3.0 inch
	The above-provided sizes are standard sizes. For some particular purposes, non-standard sizes are also available.
Standard working part lengths on felting needles	30mm
	24mm
	22mm
	The above-provided sizes are standard sizes. For some particular purposes, non-standard sizes are also available.

Specifications available:

Teardrop needles come with the most wider range of sizes.
(available sizes – 36G, 38G

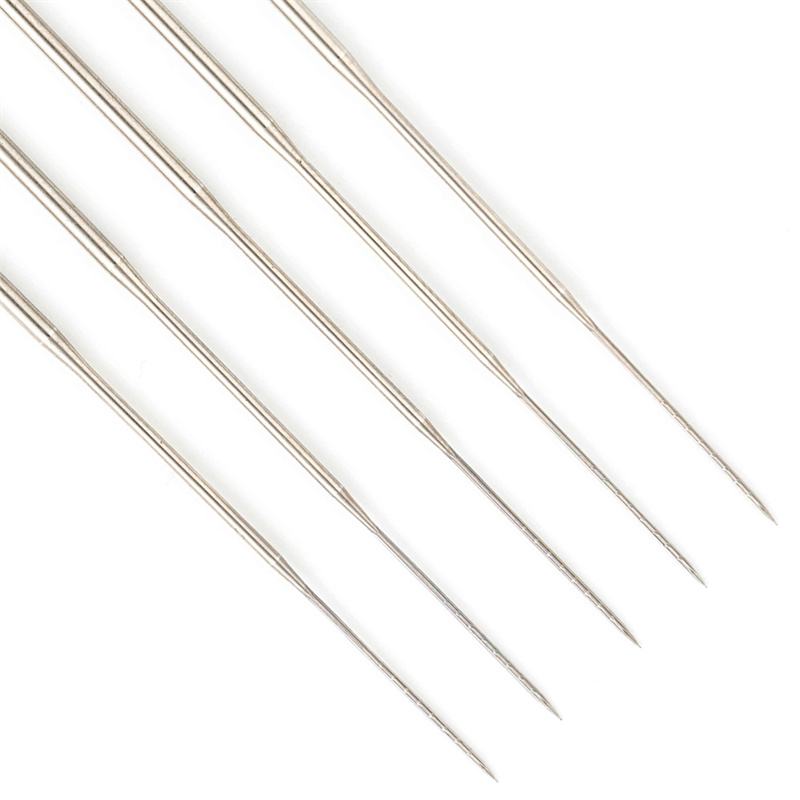

38G teardrop needle

product-description1

Application field

Nonwoven fabrics can be bonded together by high temperature, chemical or mechanical methods, the latter of which requires the use of a needle.When mechanical bonding is used, the fibers are transported by a barbed needle and wound into the fabric.This improves the friction between the fibers to increase the bonding of non-woven fabrics.The needle plate of the needle machine has a large number of needles embedded in it, and these needles will pass through the non-woven fabric in the specified direction.Mainly used in geotextile, press cloth, filter bag, artificial leather, disposable carpet, car interior, handmade wool, cotton, bra cotton and other surface requirements of the production of products.

Corrugated board conveyor belt

Spiral Press filter Fabrics

Features

•The cross section of the working site is water droplet
•The working position is parallel between the tip and the tapering cone
•All barbs on one edge are of the same size
•Most common number of barbs: 4, 6, or 8 barbs

Advantages

•Better tangling effect of fiber in the hook thorn area, and better acupuncture efficiency higher
•Extremely light on the warp and weft net of the base cloth
