Needle Punched Nonwoven Polyamide Felt Nonwoven Felting Needle

Short Description:

This non-woven needle also belongs to the triangle needle, both sides of the edge without teeth, the other edge has 4 or 6 or 8 teeth, the tooth spacing is extremely dense 1.35㎜, suitable for multi-layer non-woven fabric composite.

Selection range

• Needle size:28 32 36 38

• Needle length: 3 ” 3.5″

• Barb shape: G GB B

• Other shapes of working parts, machine number, barb shape and needle length can be customized

Send email to us

Product Detail

Product Tags

Product Description

Quick Details

Product name: Felting needles
Warranty: 1.5 years Applicable
Brand Name: YUXING
Use: NEEDLE LOOM
Type: NEEDLE BOARD
Production capacity: 600 million

Condition: New
Raw material: HIGH CARBON STEEL
Place of Origin: Zhejiang, China Brand
Application: For Needle nonwoven fabric
Packing: Well packed from water and damage

Packaging & Delivery

MOQ:10000pcs
Selling Units:Multiple of 10000
Package size per batch: 32X22X10 cm
Gross weight per batch:12.00 kg
Package Type:500pcs into 1 plasitc box,then 10000pcs again into 1 carton box
Picture Example:

Lead Time:

Quantity(Pieces)	1 - 500000	>500000
Est. Time(days)	10	To be negotiated

Products Show

Product Description

Gauges and diameters of Felting Needles

product-description1

Gauge	Shank (mm)	Intermediate Section (mm)	Working part Triangular blade beight (mm)
9	3.56
10	3.25
12	2.67
13	2.35		2.50
14	2.03		2.05
15	1.83	1.75	1.95
16	1.63	1.55	1.65
17	1.37	1.35	1.45
18	1.21	1.20	1.30
19			1.15
20	0.90		1.00
22			0.95
23			0.92
25		0.80	0.90
26			0.85
28			0.80
30			0.75
32		0.65	0.70
34			0.65
36			0.60
38			0.55
40			0.50
42			0.45
43			0.40
46			0.35
The diameter of different parts of needle is indicated by gauge. The smaller gauge meams the larger diameter. When in the working part, the cross-section height is indicated by working part gauge. The cross-section height of conical working part is measured on the position of 5mm from needle point. The other cross-section shape is measured by their height.

Detailed parameters of the felting needle
Product name	Triangular Felting Needles
Product name	Triangular Felting Needles
texture	high-carbon steel
colour	bright nickel white
Barb spacing	regular spacing
	medium spacing
	close spacing
	frequent spacing
	single spacing
Barb Styles	Type F (Good penetration and hair amount, generally used as pre-piercing)
	Type G Less damage to fiber
	Type B Less damage to fiber
	Type GB Morewear-resistant during use
	Type L On the basis of the B type, the hook teeth are more rounded
	Type K(Open style needle） (Can make the hook spines with better hair quantity)

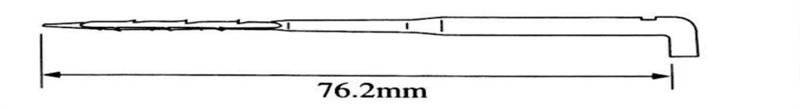

Nominal length of felting needles	5.0 inch
	3.5 inch
	3.0 inch
	The above-provided sizes are standard sizes. For some particular purposes, non-standard sizes are also available.
Standard working part lengths on felting needles	33mm
	30mm
	24mm
	20mm
	The above-provided sizes are standard sizes. For some particular purposes, non-standard sizes are also available.

Application field

This needle is suitable for multi-layer non-woven fabric composite, because there is only one edge of the teeth, so in the process of puncture, the damage to the longitude and latitude lines of the middle base cloth is not large, which is conducive to the smooth surface of the product and does not damage the base cloth. It is often used in the production of papermaking blankets, corrugated cardboard conveyor belts, and other multi-layer composite heavy products. Of course, now the domestic multi-purposeTeardrop needles needle, is the upgraded version of the single tooth needle products.
