High Quality Embroidery Tri Star Needles Wool Felting Needles Use for Nonwoven

Short Description:

Tri star needles, needles usually break at the part of barb, characteristic of tri star needles is it have three curved extruding edges on the circular working section, and all the barbs evenly distributed on the three edges, reducing the possibility of broken needles caused by the barb.

Selection range

• Needle size: 32, 36, 38, 40

• Needle length: 3 “3.5″

• Barb shape: G B BG

• Other shapes of working parts, machine number, barb shape and needle length can be customized


Product Detail

Product Tags

Product Description

Quick Details

Product name: Felting needles
Warranty: 1.5 years Applicable
Brand Name: YUXING
Use: NEEDLE LOOM
Type: NEEDLE BOARD
Production capacity: 600 million

Condition: New
Raw material: HIGH CARBON STEEL
Place of Origin: Zhejiang, China Brand
Application: For Needle nonwoven fabric
Packing: Well packed from water and damage

Packaging & Delivery

MOQ: 10000pcs
Selling Units: Multiple of 10000
Package size per batch: 32X22X10 cm
Gross weight per batch: 12.00 kg
Package Type: 500pcs into 1 plasitc box, then 10000pcs again into 1 carton box
Picture Example:

product description04
product description05

Lead Time:

Quantity(Pieces)

1 - 500000

>500000

Est. Time(days)

10

To be negotiated

Products Show

product description01
product description02
product description03

Product Description

Gauges and diameters of Felting Needles

product description01

Gauge

Shank

(mm)

Intermediate Section

(mm)

Working part Triangular blade beight

(mm)

9

3.56

10

3.25

12

2.67

13

2.35

2.50

14

2.03

2.05

15

1.83

1.75

1.95

16

1.63

1.55

1.65

17

1.37

1.35

1.45

18

1.21

1.20

1.30

19

1.15

20

0.90

1.00

22

0.95

23

0.92

25

0.80

0.90

26

0.85

28

0.80

30

0.75

32

0.65

0.70

34

0.65

36

0.60

38

0.55

40

0.50

42

0.45

43

0.40

46

0.35

The diameter of different parts of needle is indicated by gauge. The smaller gauge meams the larger diameter. When in the working part, the cross-section height is indicated by working part gauge. The cross-section height of conical working part is measured on the position of 5mm from needle point. The other cross-section shape is measured by their height.

Detailed parameters of the felting needle

Product name

Tri Star Needles

product description01

 product description01

texture

high-carbon steel

product description03

colour

bright nickel white

Barb spacing

regular spacing

product description04

medium spacing

product description05

close spacing

product description06

frequent spacing

product description07

single spacing

product description08

Barb Styles

Type F

(Good penetration and hair amount, generally used as pre-piercing)

product description09

Type G

Less damage to fiber

product description10

Type B

Less damage to fiber

product description11

Type GB

Morewear-resistant during use

product description12

Type L

On the basis of the B type, the hook teeth are more rounded

product description13

Type K(Open style needle)

(Can make the hook spines with better hair quantity)

product description14

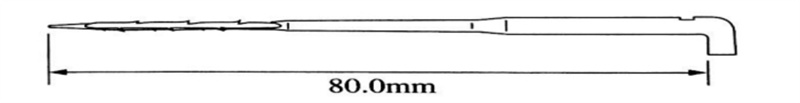

Nominal length of felting needles

5.0inch

product description15

4.5inch

product description16

4.0inch

product description17

3.5 inch

product description18

3.15inch

product description19

3.0 inch

product description20

The above-provided sizes are standard sizes. For some particular purposes, non-standard sizes are also available.

Standard working part lengths on felting needles

24mm

product description21

30mm

product description22

The above-provided sizes are standard sizes. For some particular purposes, non-standard sizes are also available.

Specifications available:

Tri Star Needles come with the most wider range of sizes.
(available sizes – 38G)

product-description1

38G Tri Star Needles

Tri Star Needles is suitable for geotextiles with strict tear strength requirements (low weight in grams)

Application field

product-description2

Tri Star Needles is suitable for handmade crafts, handmade toys, handmade wool felt, leather cloth, car interior and so on……

product-description2
product-description3
product-description4
product-description5
product-description6
product-description7

Features

•The working area is equilateral triangle
•The working part is parallel from tip to tapered cone
•Hooks of the same size on all edges
•The most common number of barbs: two barbs per edge
•The shape of the working part is concave on the side so that the Angle of the edge is sharper
•The cross-sectional area of the working area is 8% smaller than that of standard needles

Advantages

• Better tangling effect of fibers in the area of the hook, and higher needling efficiency
• Reasonably increase productivity
